In the realm of flat surface screen printing, the pursuit of high precision, broad adaptability, and operational efficiency has driven continuous technological innovation. Among the game-changing equipment, the swing-arm large flatbed screen printing machine stands out as a versatile workhorse, bridging the gap between intricate detail and large-format production. Designed with a unique inclined arm structure and advanced control systems, it has become an indispensable tool for industries ranging from electronics and packaging to advertising and industrial manufacturing. This article delves into the core advantages, technical features, application scenarios, and selection tips of this equipment, helping you unlock its full potential for your production line.
Core Advantages: Why Swing-Arm Design Outperforms Traditional Equipment
Core Advantages: Why Swing-Arm Design Outperforms Traditional Equipment
The swing-arm large flatbed screen printing machine’s superiority lies in its innovative structural design and intelligent integration, addressing the pain points of traditional flatbed printers such as cumbersome operation, poor stability, and limited adaptability.
1. Unmatched Operational Ergonomics & Space Efficiency

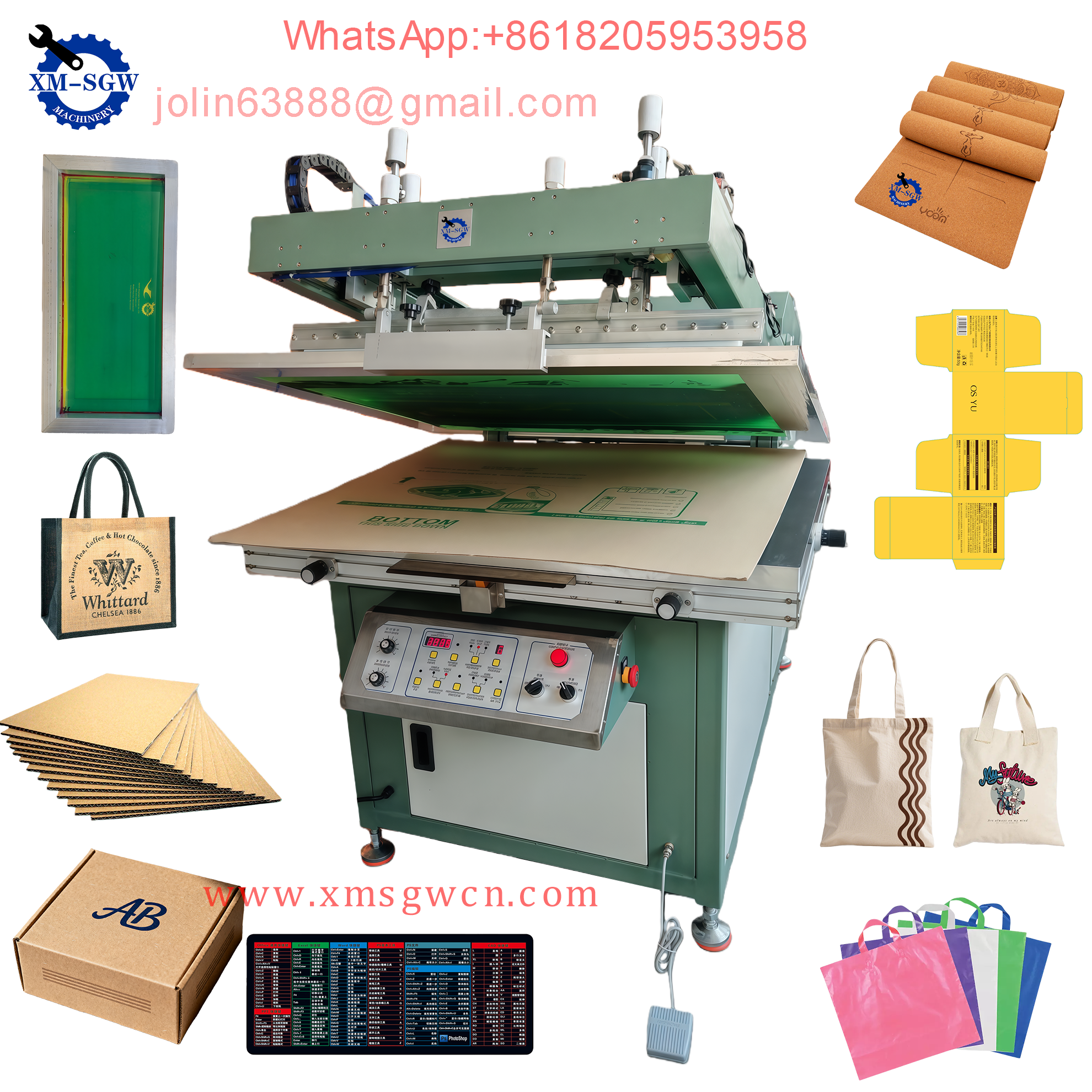

Featuring a 45° inclined swing arm structure, the machine eliminates the operational obstruction caused by vertical arms. Operators can easily load and unload large-format substrates without bending excessively, reducing fatigue during long shifts. This ergonomic design not only boosts workflow efficiency but also minimizes human errors caused by awkward postures. Additionally, the compact layout optimizes workshop space utilization, making it suitable for both small workshops and large-scale production facilities .
2. Superior Printing Stability & Micron-Level Precision
Equipped with a suspended balanced structure and high-strength alloy swing arm, the machine achieves four-point stress compensation, ensuring that the squeegee pressure error is within 0.2N across a 1.2m printing width. When handling large substrates up to 1.5m×2m (such as acrylic panels or aluminum sheets), the ink thickness deviation per square centimeter is less than 3 microns. Combined with a grating ruler positioning system and servo motor drive, the registration accuracy is controlled at ±0.01mm—equivalent to 1/5 the diameter of a human hair—reducing scrap rates by 70% compared to traditional equipment .
3. Versatile Substrate Adaptability
Unlike offset or flexographic printing machines that struggle with non-absorbent materials, the swing-arm large flatbed screen printer excels at printing on diverse substrates, including metal, plastic, glass, ceramic, cardboard, and composite materials. It can handle substrates with a thickness of 2-20mm, adapting to both rigid panels (such as industrial control panels) and semi-rigid materials (like PET films). For irregularly shaped substrates such as triangular gift boxes or curved plastic containers, optional 360° rotating worktables enable seamless printing without deformation .
4. Cost-Effective Production & Quick Changeover
The magnetic screen frame fixing system allows for plate changes in just 3-8 minutes, a significant reduction from the 40 minutes required by traditional equipment. This makes it ideal for small-batch customized production and frequent design iterations. With a low minimum profitable batch (as few as 500 pieces) and equipment purchase cost only 1/10 that of gravure printers, it delivers exceptional cost efficiency for medium and small enterprises. The scrap rate is controlled below 3% through real-time visual positioning, further optimizing production costs .
Key Technical Features: Powering High-Performance Printing
Key Technical Features: Powering High-Performance Printing
The exceptional performance of the swing-arm large flatbed screen printing machine is supported by advanced components and intelligent systems, ensuring reliability and consistency in mass production.
- Servo-Driven Control System: Adopting Mitsubishi PLC and touch screen operation, it enables digital adjustment of 12 key parameters including squeegee angle, pressure, printing speed, and ink viscosity. Servo motors drive the swing arm and worktable, ensuring stable operation even after 100,000+ cycles, meeting military-grade electronic component production requirements .
- Vacuum Adsorption Platform: A high-rigidity aluminum alloy table with dense φ1.0mm vacuum holes securely holds substrates in place, preventing displacement and ink unevenness during printing. The platform flatness is maintained within 0.05mm, ensuring consistent pressure distribution across the entire printing area .
- Multi-Ink Compatibility: Compatible with UV-curable, solvent-based, and water-based inks, it supports special effects such as frosted, embossed, and fluorescent printing. For food packaging and medical devices, it can use FDA-certified inks to meet industry standards .
- Safety & Durability: Built with heavy-duty welded steel construction to eliminate vibration during operation. Equipped with CE-certified safety bars, automatic pressure detection, and fault protection systems, it ensures operator safety. The linear ball bearings on hardened shafts extend the machine’s service life .
Wide-Ranging Application Scenarios
Wide-Ranging Application Scenarios
From precision electronics to large-format advertising, the swing-arm large flatbed screen printing machine adapts to diverse industry needs, delivering high-quality prints across various sectors:
Electronics Industry
Ideal for printing flexible printed circuits (FPC), ITO conductive glass, LED TV backlight modules, membrane switches, and instrument panels. Its micron-level precision ensures accurate alignment of 0.05mm-wide circuit lines, supporting the production of high-end electronic components .
Advertising & Signage
Suitable for large-format substrates such as acrylic sheets, corrugated plastic boards, glass panels, and metal nameplates. It can print backlit signs, display panels, and promotional billboards with vivid colors and strong ink adhesion, resisting outdoor weathering and friction .
Packaging Industry
Widely used in printing food gift boxes, cosmetic hoses, metal tea cans, and plastic turnover boxes. It achieves seamless 360° printing on cylindrical packaging, and its adjustable squeegee pressure adapts to 1-5mm thick corrugated cardboard without causing material damage. Metal inks can replace hot stamping processes, reducing single-piece costs by 15-20% .
Industrial Manufacturing
Applied to printing industrial control panels, aluminum alloy decorative panels, ceramic substrates, and chemical metal barrels. The explosion-proof motor design adapts to solvent-based ink environments, while high-temperature curing inks ensure scratch-resistant and corrosion-resistant prints .
How to Choose the Right Swing-Arm Large Flatbed Screen Printing Machine?
How to Choose the Right Swing-Arm Large Flatbed Screen Printing Machine?
Selecting the optimal machine requires considering your production needs, substrate characteristics, and quality requirements. Here are key factors to evaluate:
- Printing Area: Choose a model based on your maximum substrate size. Common large-format options range from 800×1300mm to 1500×2000mm. Custom sizes are available for special production needs .
- Drive System: Pneumatic systems offer cost-effectiveness for general applications, while servo-driven systems provide higher precision and speed adjustability, suitable for multi-color overprinting and electronic component production .
- Substrate Compatibility: Ensure the machine supports your substrate thickness and material. For non-flat substrates, opt for models with rotating worktables or curved surface positioning devices .
- Intelligent Functions: For mass production, prioritize machines with MES system integration, automatic cleaning, and parameter storage functions to realize full-process quality traceability .
- After-Sales Support: Select manufacturers with ISO certification and global service networks to ensure timely maintenance, spare parts supply, and technical training .
Conclusion: Elevate Your Printing Production with Innovation
Conclusion: Elevate Your Printing Production with Innovation
The swing-arm large flatbed screen printing machine redefines the standards of flat surface printing through its ergonomic design, micron-level precision, and versatile adaptability. Whether you’re a small business pursuing customized production or a large enterprise aiming for efficient mass manufacturing, this equipment delivers consistent quality, cost savings, and operational flexibility. By integrating advanced technology and practical design, it empowers industries to overcome traditional printing limitations and unlock new creative possibilities.
Ready to upgrade your production line? Contact our experts today for a customized solution tailored to your industry needs, and experience the transformative power of swing-arm large flatbed screen printing technology.
