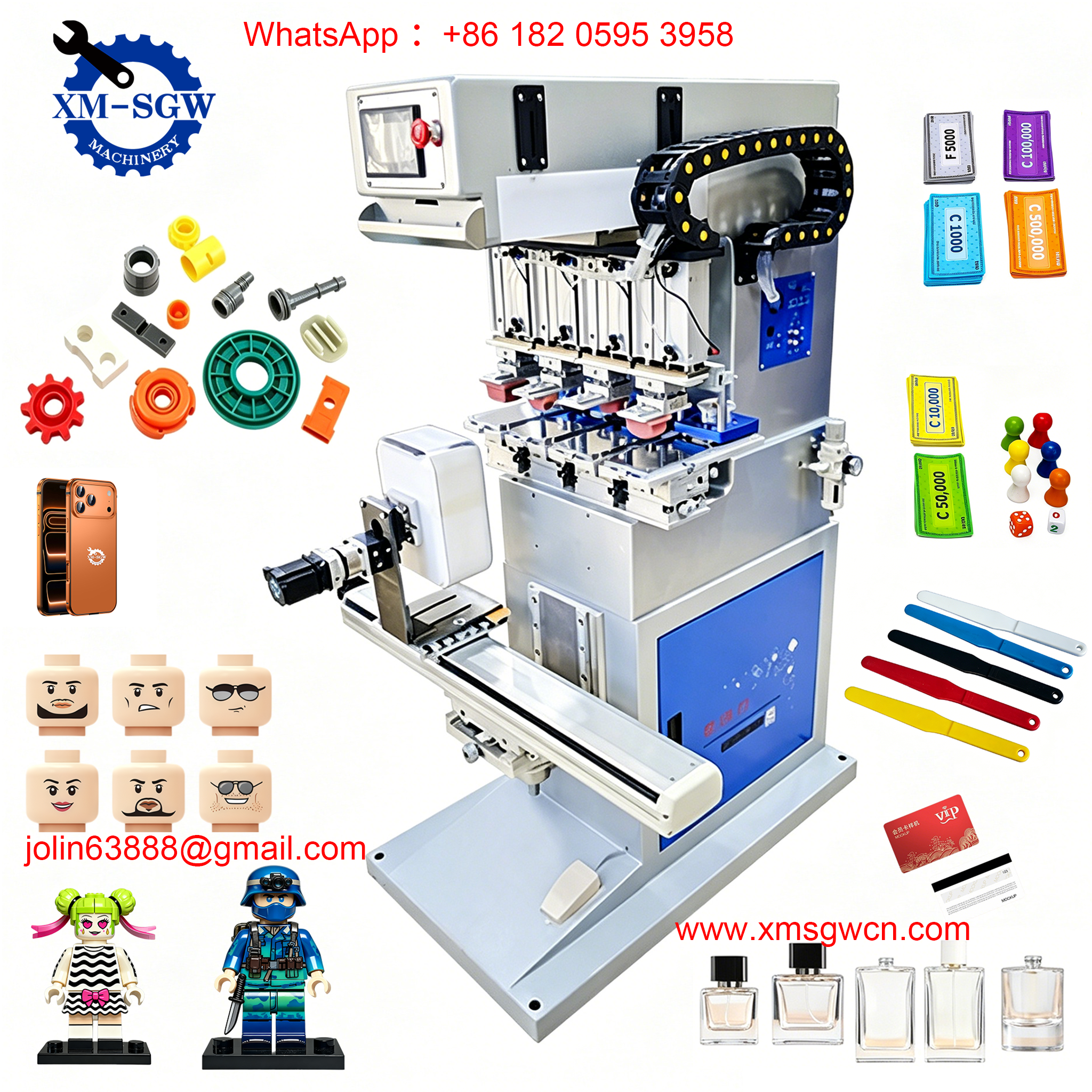

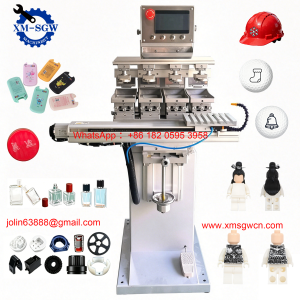

A four-color pad printing machine is an automated industrial printing device designed for multi-color pattern marking and decoration. It adopts silicone pad transfer technology and high-precision registration system to realize synchronous four-color printing on various irregular and curved surfaces, which is widely used in electronics, hardware, toys, glass and plastic product processing.
The core working principle follows a sequential and cyclic transfer process. Different from single-color pad printers, this machine is equipped with four independent ink cups, etched cliché plates and silicone pads, corresponding to four different printing colors respectively.
First, the machine’s ink supply system fills the etched patterns on each steel cliché with specific color ink. The doctor blade automatically scrapes off excess ink, leaving ink only in the engraved pattern grooves to ensure clear and uniform printing patterns.
Then, the elastic silicone pads pick up ink from the corresponding printing plates in sequence. Thanks to the soft deformability of silicone material, the pads can fully fit various complex workpiece surfaces. The conveyor or shuttle system drives the workpiece to pass through four printing stations one by one.
During operation, each color layer is transferred and overlaid accurately via high-precision positioning sensors. A short drying process is completed between each color printing to prevent ink bleeding and color mixing. After four rounds of independent ink transfer and overlay, complete multi-color patterns are formed on the substrate surface.
In short, the four-color pad printing machine realizes efficient and high-precision multi-color integrated printing through independent color matching systems, cyclic ink transfer and precise color registration. It solves the problem of low efficiency of manual color overlay and delivers stable, delicate and color-rich printing results for mass production.
