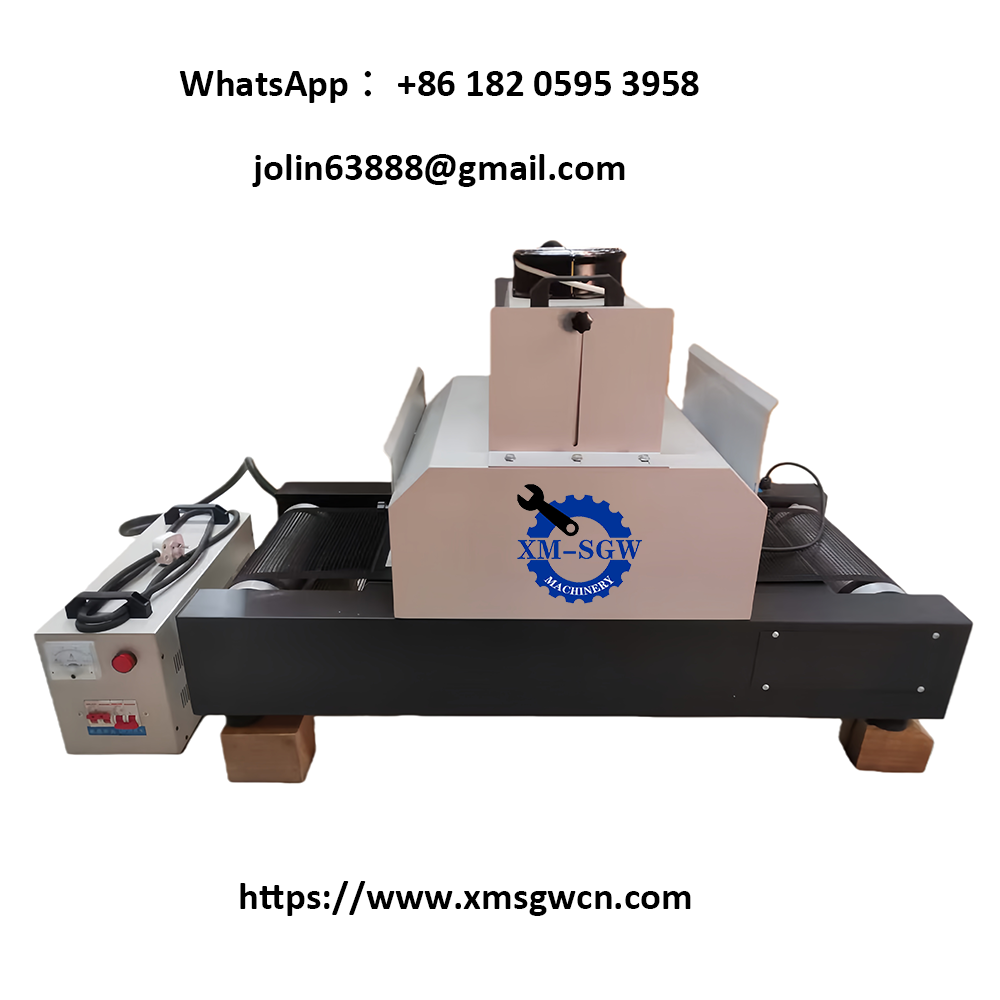

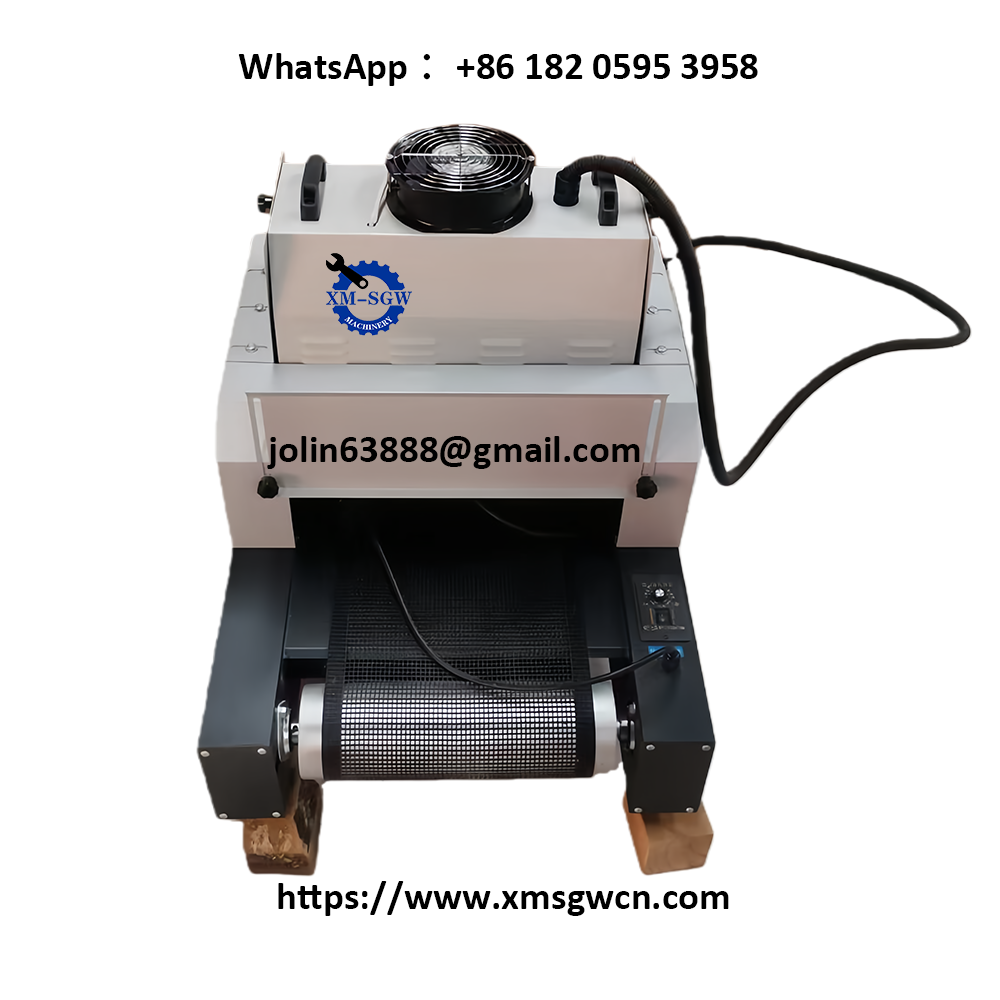

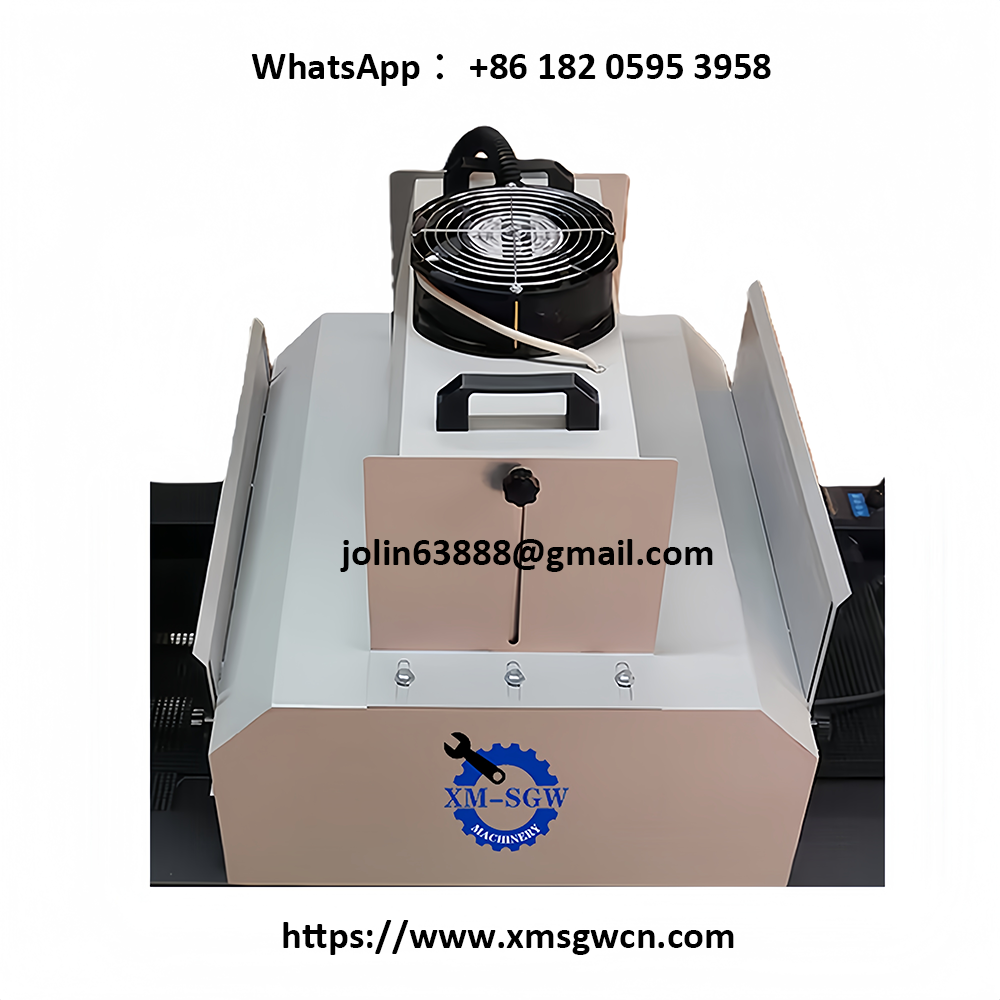

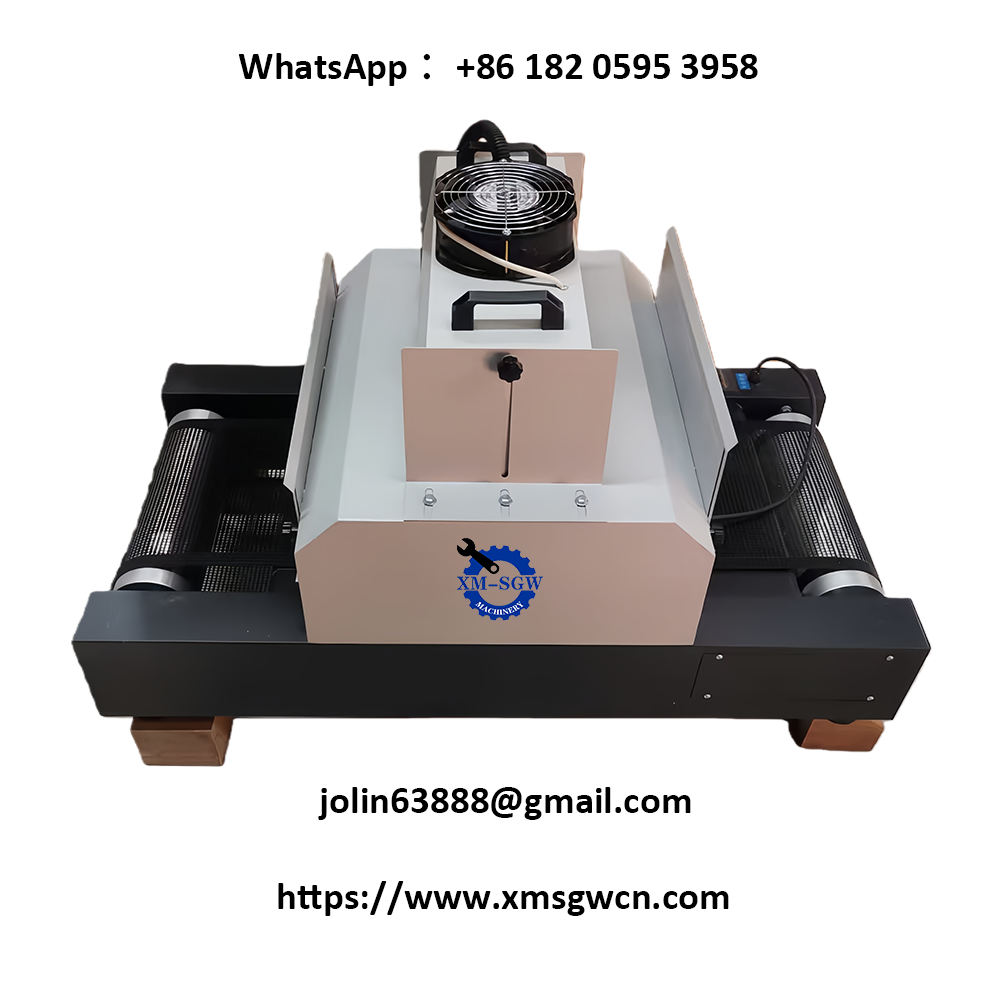

Low Price Semi-Automatic Small Uv Curing Machine With Conveyor Belt for Screen Printing

■ This machine has an attractive appearance, is small in size, light in weight, saves space, has a wide range of applications, is reliable in quality, safe to use and convenient to operate.

■ This machine can work in a mobile manner, with strong randomness and flexibility.

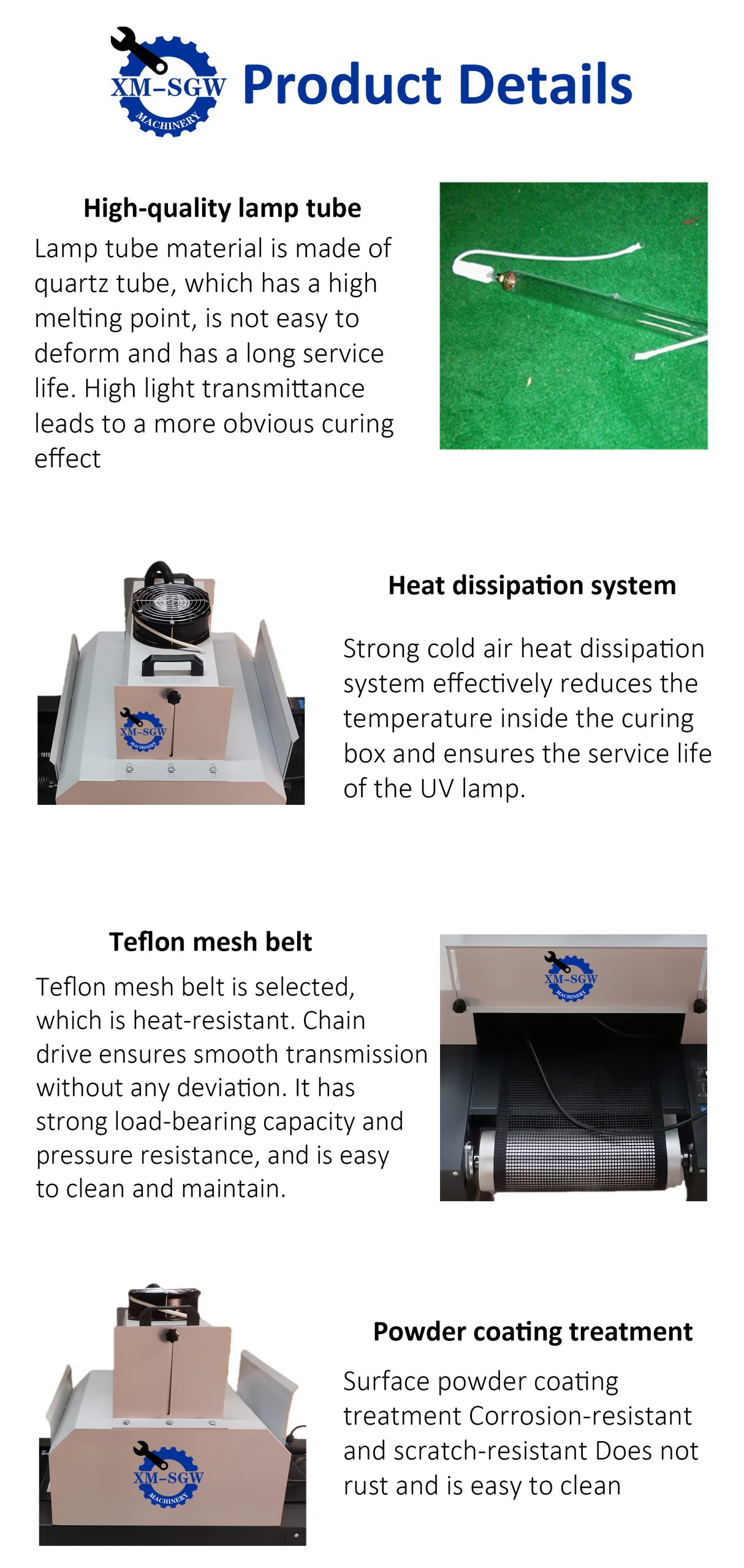

■ Imported light source reflector, maximum refraction of UV light, enhancing the drying and curing effect.

■ A good heat dissipation system ensures that the workpiece is not affected by temperature and extends the service life of the lamp tube.

Products Categories
Screen Printing Machine
Pad Printing Machine
Hot stamping machine
Thermal Transfer Equipment
Packing Machine
Post-Press Equipment
Consumables
Get A Free Quote
Contact Form Demo (#3)

Small Uv Curing Machine Description

Semi-Automatic Small Uv Curing Machine With Conveyor Belt Data Sheet

Power supply: AC 220V
Feed/Discharge length: 250/270mm
Appearance dimensions: L1020mmxW560mmxH500mm
Feed height: 120mm

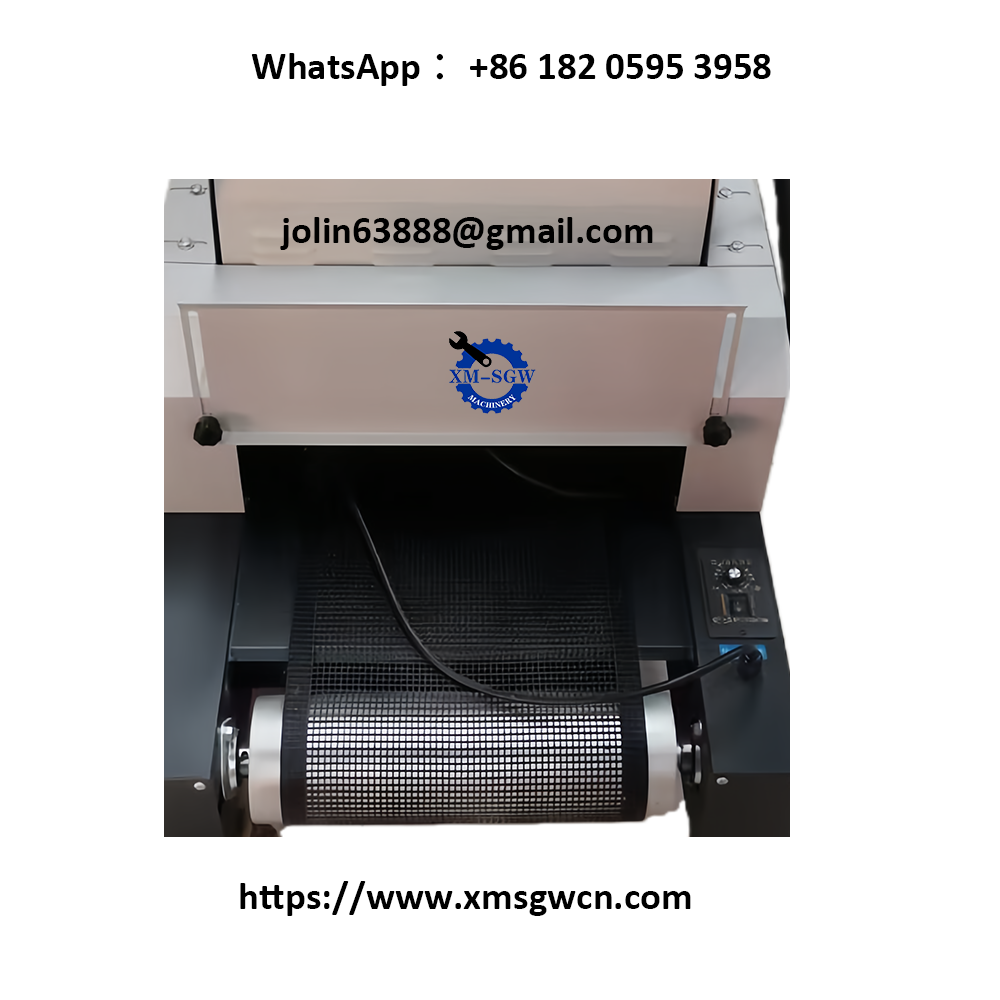

Conveying form: Mesh belt conveying
Conveying width: 300mm
Transmission speed: 0-16m/min
Transmission form: Chain drive
Conveyor motor: AC electronic speed regulation 25W
Exhaust fans: 38W 1 unit, 24W 1 unit
UV lamp tube: 2KWx1 piece
Lamp tube lifespan: Imported tubes can reach up to 800 hours
Decoration form: Powder coating
Plate material: High-quality cold-rolled plate
Total power: 2.1KW
Weight: 75KG

Uv Curing Machine With Conveyor Belt Applications

Used for UV surface coating of mobile phone casings, optical discs, membrane switches, and electronic plastic casings; curing of various UV coatings and inks for IMD injection molded products; used for curing electronic components, LCD panels, terminal sealing, mobile phone component bonding, plastic component bonding, and UV curing of LCDs and UV-curing adhesives; the device is small in size, lightweight, well-made, easy to move, and suitable for desktop placement.



Uv Curing Machine Video

Get Free Quote of Uv Curing Machine
