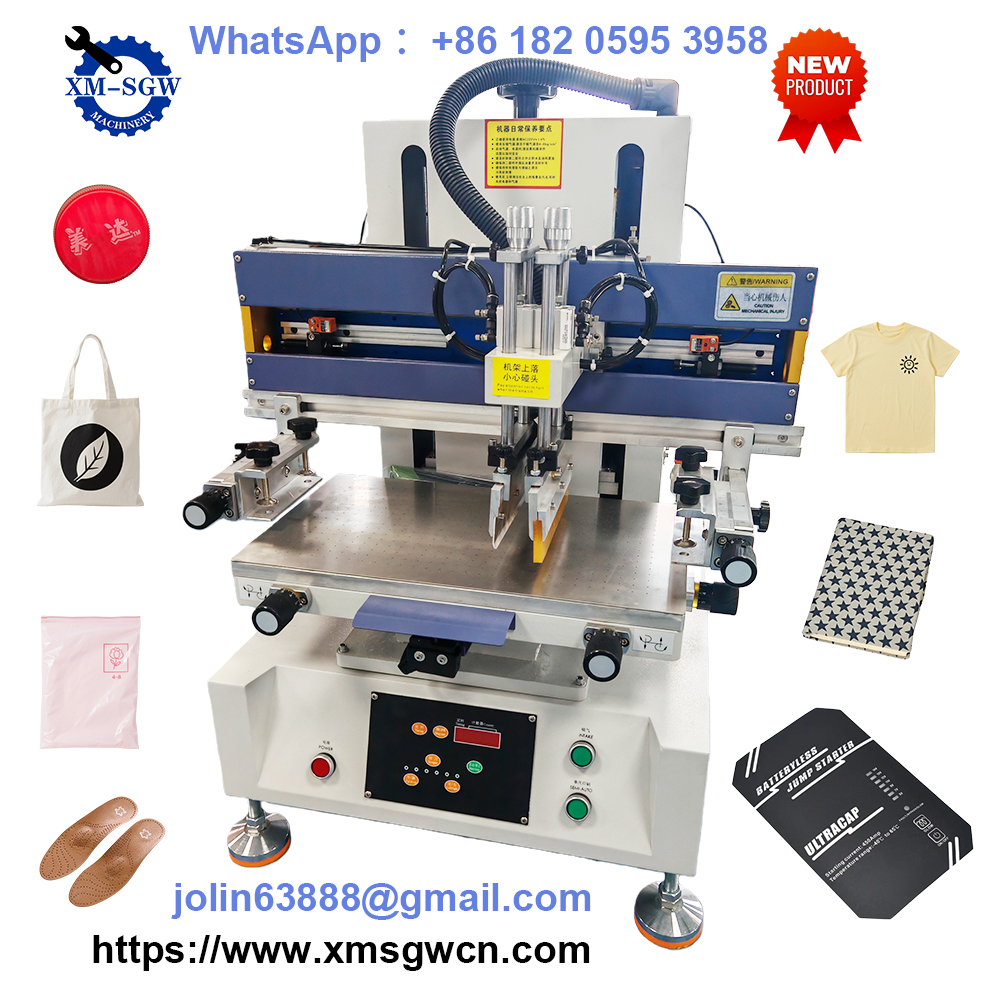

Semi-Automatic Flat Silk Screen Printing Machine for Custom Prints Paper Bag Plastic Bag and Shopping Bags
1. Compile action programs using integrated circuits
2. An automatic four-digit counter for counting print quantities; The body is made of all-cast aluminum and the surface is powder-coated and baked.

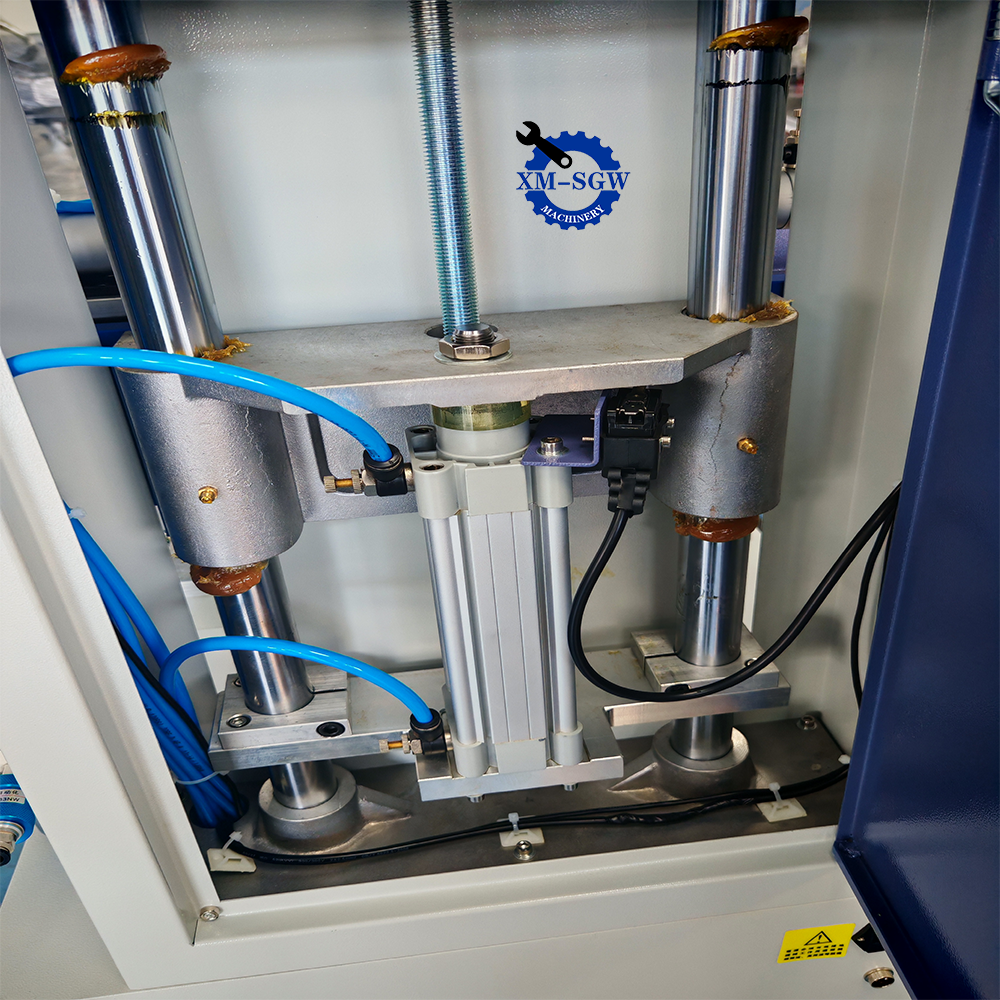

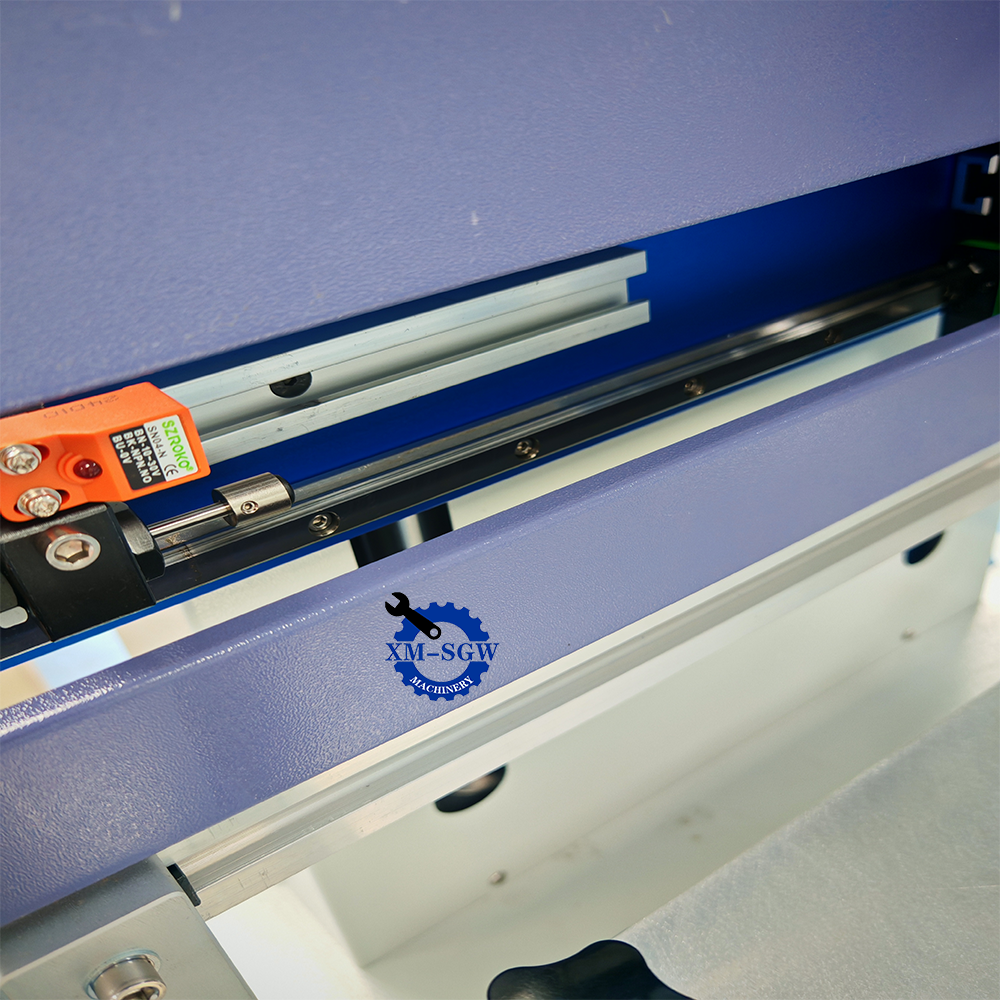

3. The screen lifting adopts a structure driven by a Taiwan motor and linear guide rails, which is stable and highly accurate.
4. The left and right travel is adjustable, and it is limited by photoelectric switches.

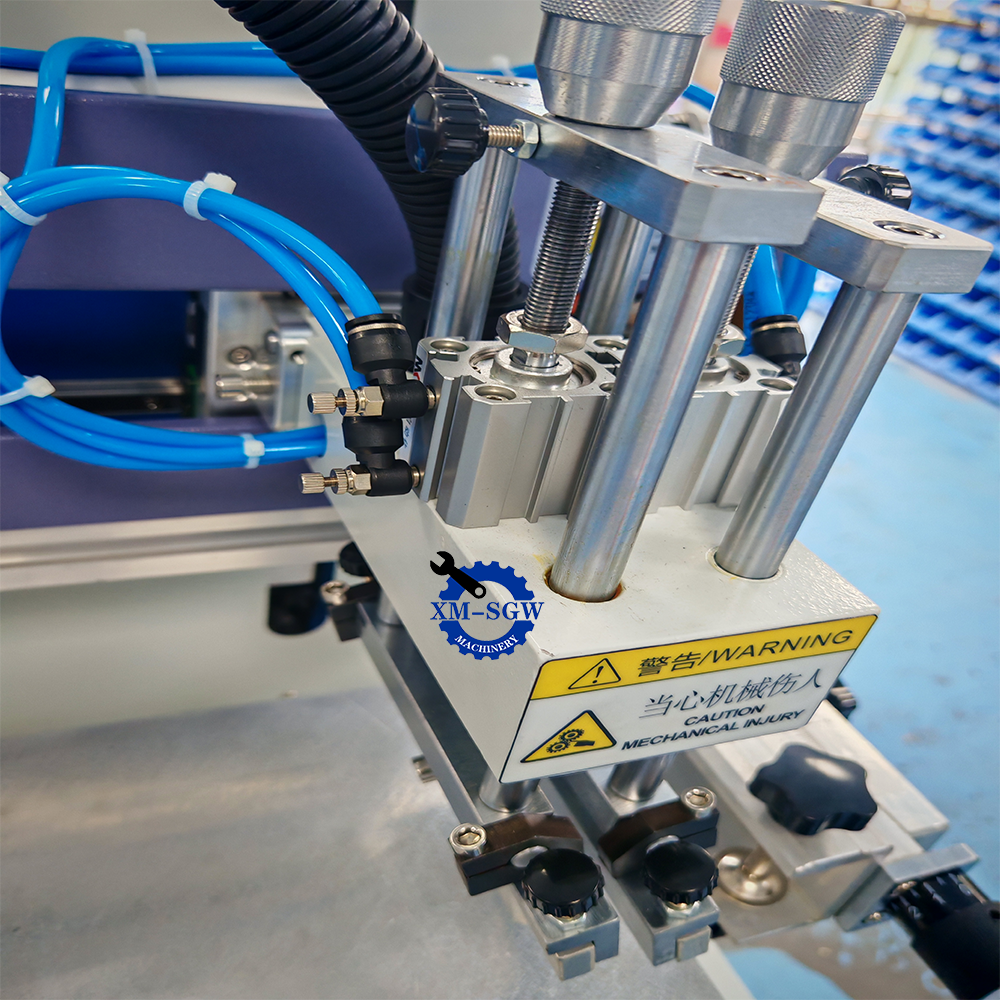

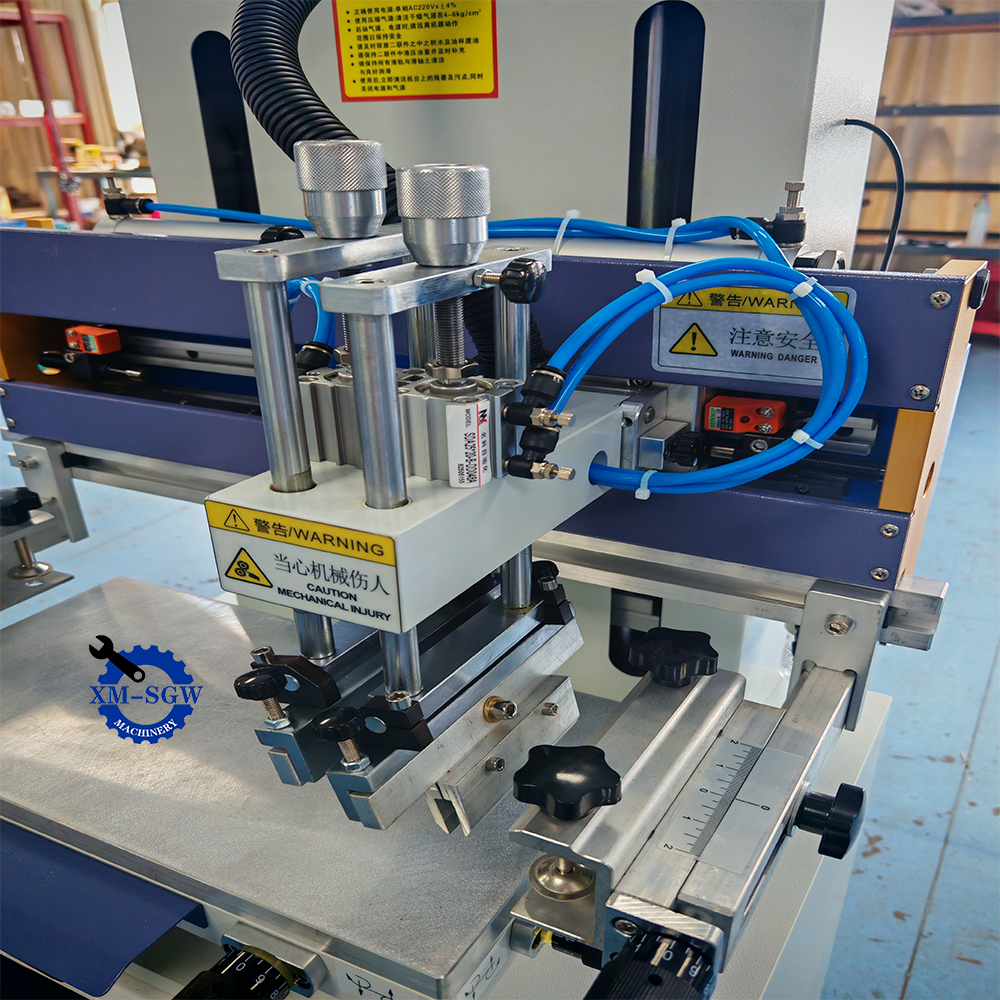

5. The Angle of the scraper/ink return knife can be adjusted freely.
6. Fine-tune the rotation Angle of the workbench to the right front and back, left and right, and then lock it.
7. The position of the mesh frame can be adjusted horizontally up and down.
8. Stainless steel suction platform.
Flat Screen Printing Machine Description
Semi-Automatic Flat Silk Screen Printing Machine Data Sheet
| Application | For Cutting Mats, For Electronics, For Textiles, For The Glass Industry, For The Paper Industry, For The Plastics Industry, For The Wood Industry |
| Control Type | Semi-Automatic |
| Dimensions(l*w*h) | 620*550*890mm |
| Voltage | 110/220V |
| Warranty | 1 Year |
| Weight | 95KG |
| Printing surface | Flat |
| Max screen printing frame size | 300*500 MM |
| Workbench size | 220*400 MM |
| Optimal printing area | 300*150 MM |
| Product height range | 75 MM |
| Air pressure | 5-6 bar |
| Color & page | Single color |
Flat Silk Screen Printing Machine Applications
Get Free Quote of Semi-Automatic Flat Silk Screen Printing Machine
